MA2323

• Type: Simple lifting

• Applicable vehicle types: Trains, track vehicles, internal combustion vehicles, and other modified vehicles

• Fabric material: Grey linen

• Filler: Polyurethane high resilience sponge

Backrest adjustment Angle: 80- 180 (°)

• Seat up and down adjustment range: 65

• Left and right adjustment range of the seat: None

• Standing feet: None

Technical parameters

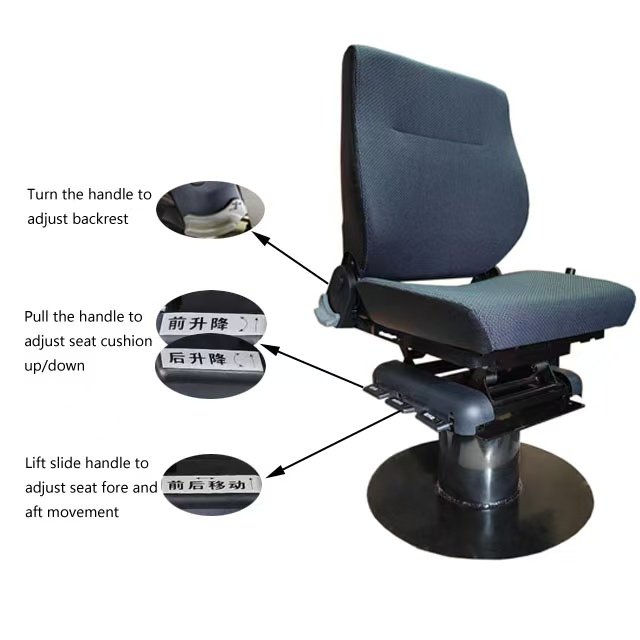

1. Backrest adjustment function: BT-T1 Angle adjuster adjustment range 80° – 180°;

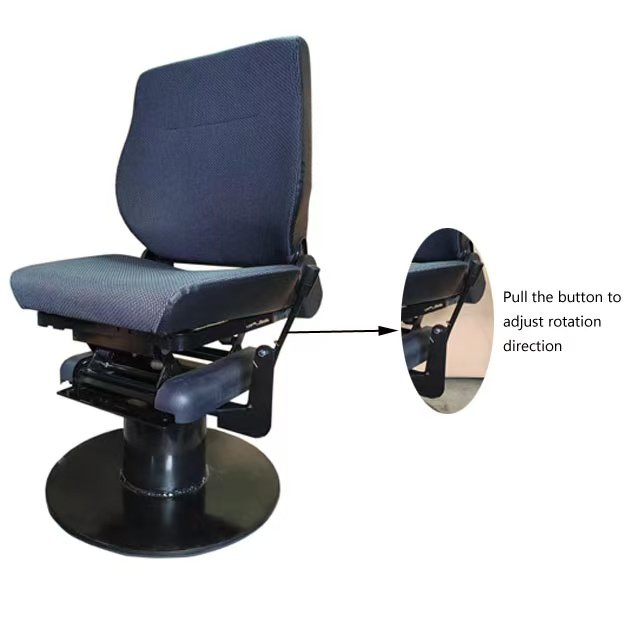

2. The front end height adjustment stroke of the up and down adjustment function is 65mm. The height adjustment stroke at the rear end is 65mm. The adjustable seat cushion slope at the front and rear ends is ±9°. Stiffness adjustment range: 40-130kg. The bottom has a total of 8 360-degree rotation adjustment gears, namely 0°, ±45°, ±90°, ±135°, and ±180°

3. Front and rear adjustment function: Single-lock slide rail; Adjust the stroke by 90mm before and 80mm after.

4. Adjustable double armrests, safety belts and headrests can be added.

5. Fabric: Black linen. The color and style of the fabric can be changed as required.

Feature description

High-quality carbon steel frames are selected, ensuring safety and quality
