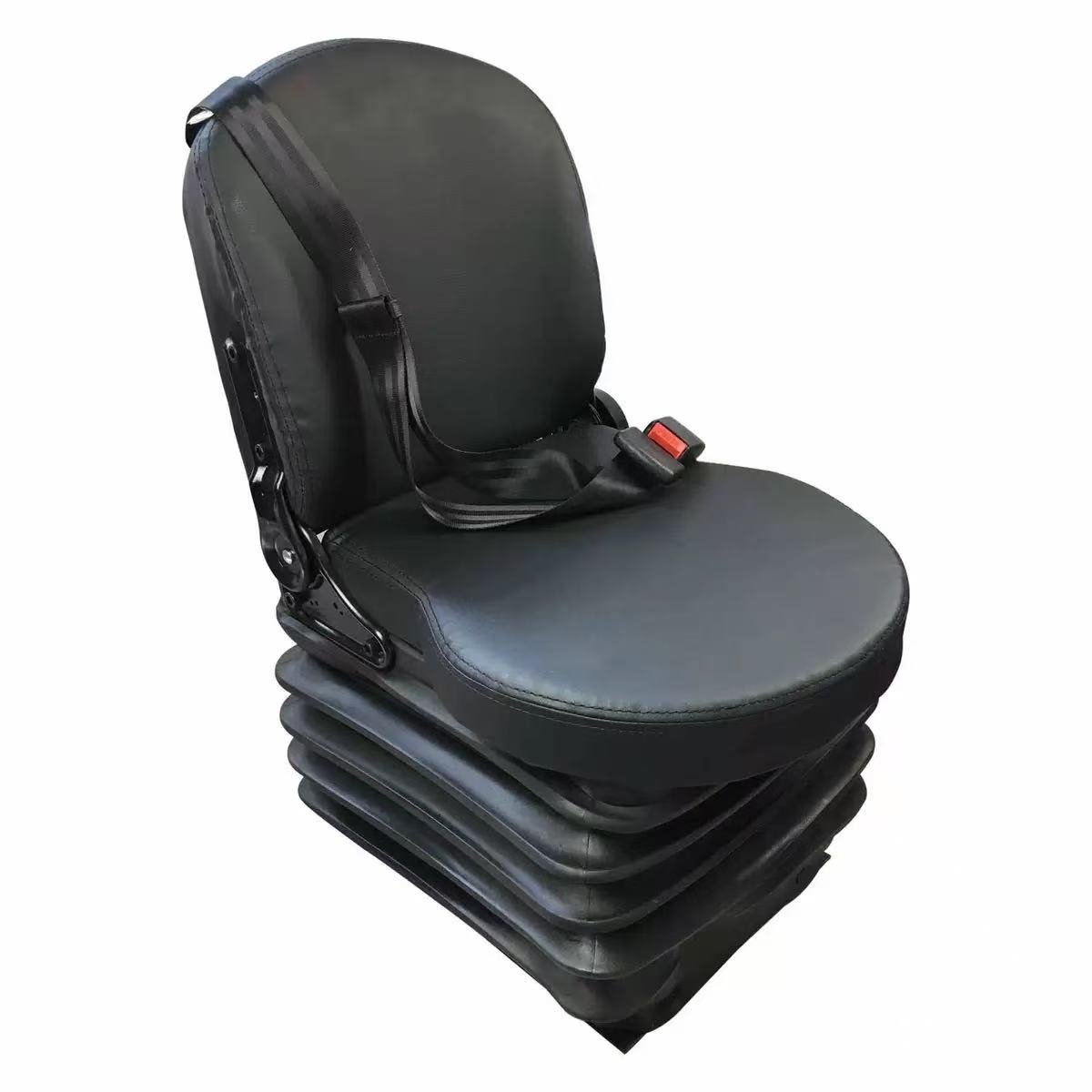

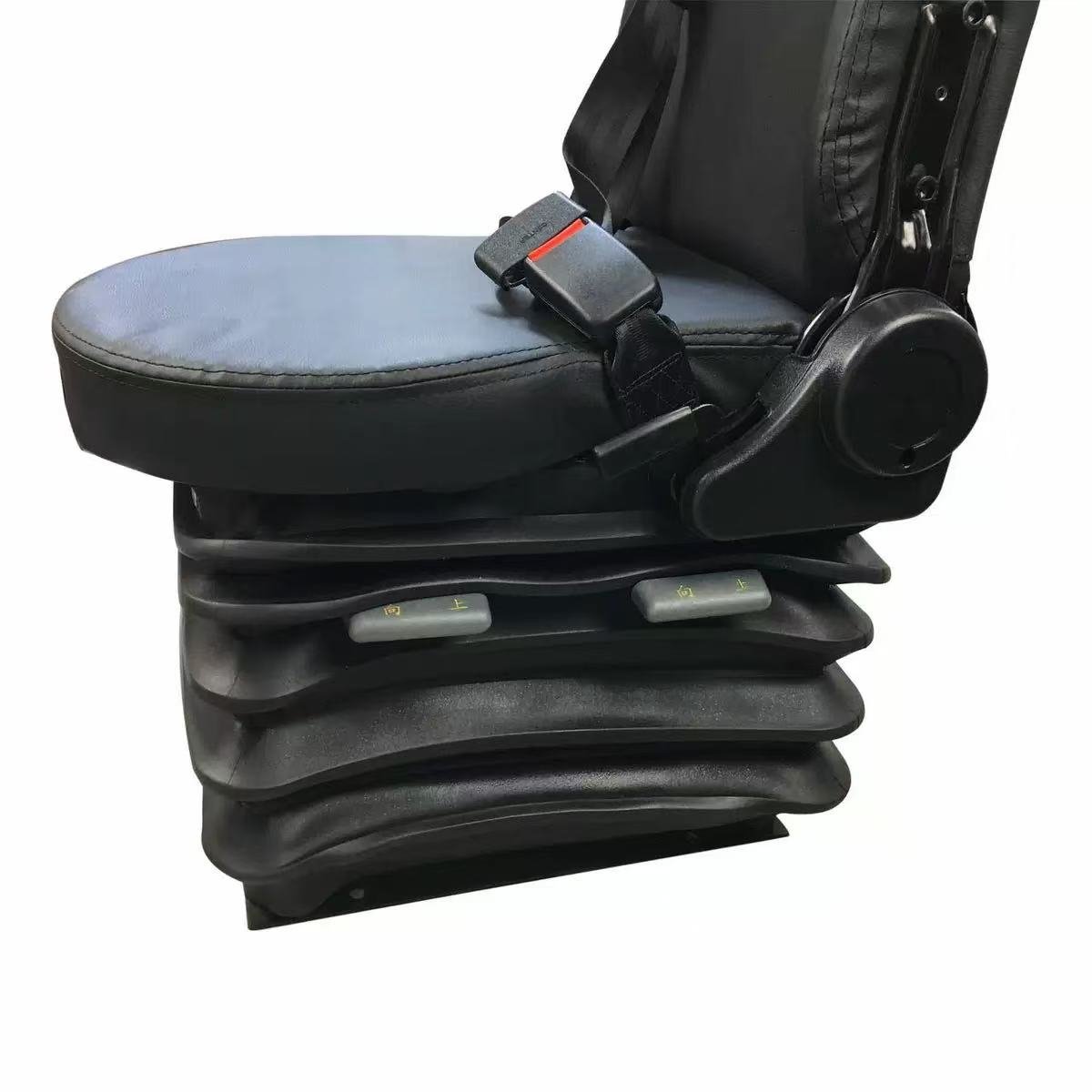

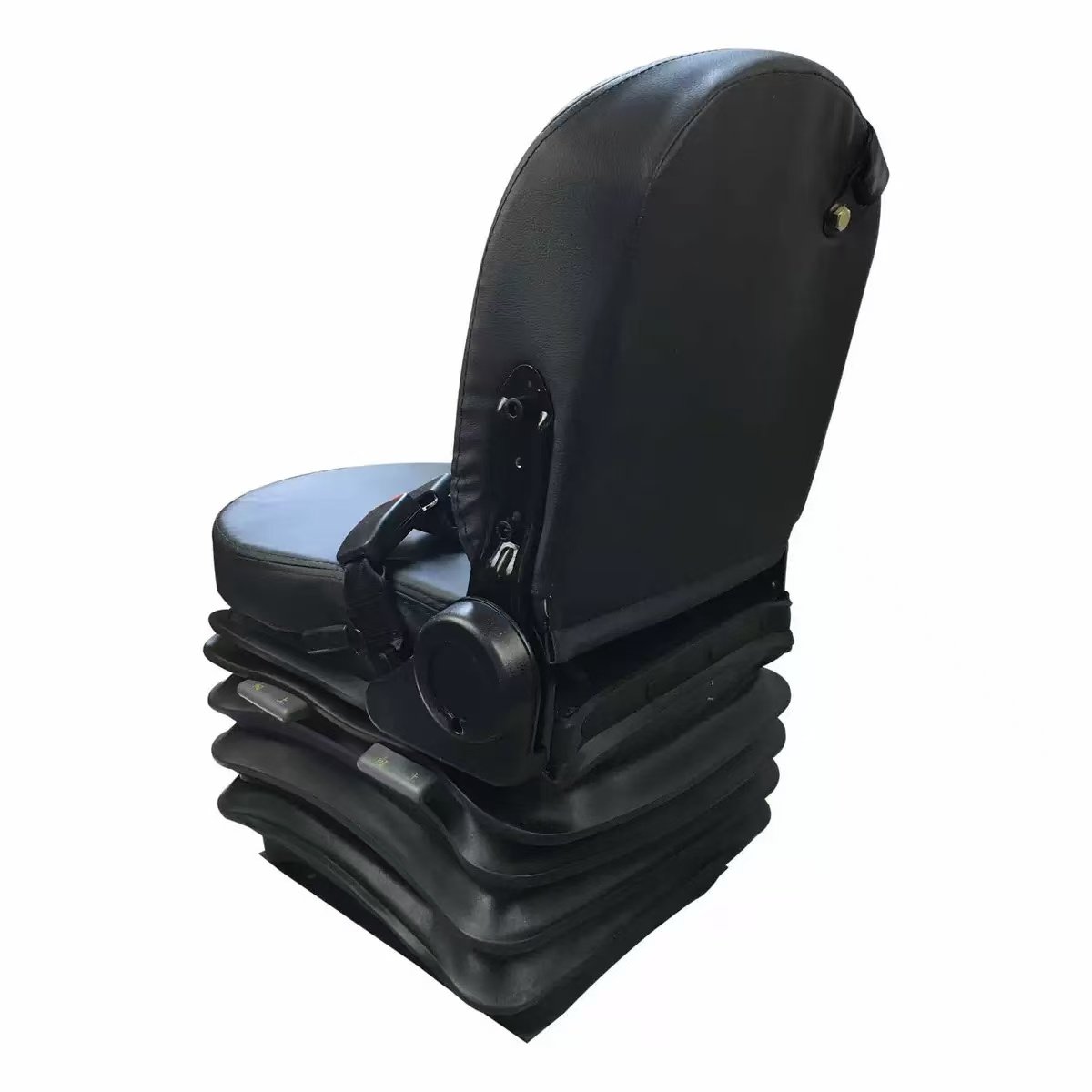

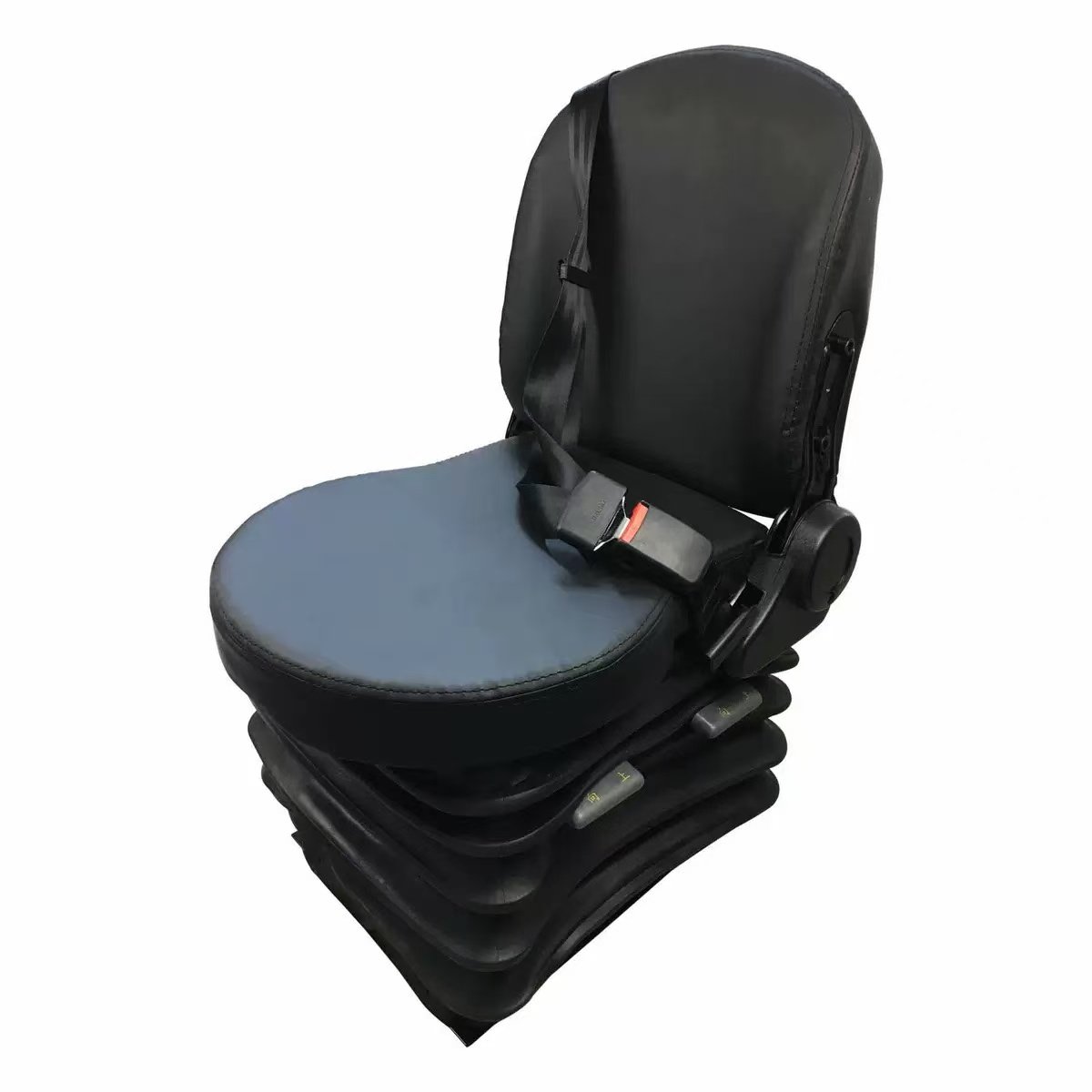

• Type: Adjustable seat
• Applicable vehicle types: Armored vehicles, special vehicles, industrial linkage consoles, construction machinery, coal mine equipment
• Dimensions: (LWH):565*590*985mm
• Fabric material: Composite fabric
• Filler: Cold-expanded one-time molded sponge
Backrest adjustment Angle: 85-85+60°
• Seat up and down adjustment range: 65mm
• Left and right adjustment range of the seat: No adjustment
• Standing feet: None
• Compatible vehicle models: Armored vehicles, special vehicles, industrial linkage consoles, construction machinery, coal mine equipment
• Supporting relationship: Applicable
• Technical Parameters
1. Backrest adjustment function: The BT-T1 Angle regulator has an adjustment range of 45° to 178°.
2. The front end height adjustment stroke of the up and down adjustment function is 65mm. The height adjustment stroke at the rear end is 65mm. The adjustable seat cushion slope at the front and rear ends is ±9°. Lifting stroke: 30mm;
3. Front and rear adjustment function: Double-lock slide rail; Adjust the stroke by 120mm before and 110mm after
4. Optional accessories: Seat belts (two-point, three-point, four-point), fabric, handrails
