YSR-MA032

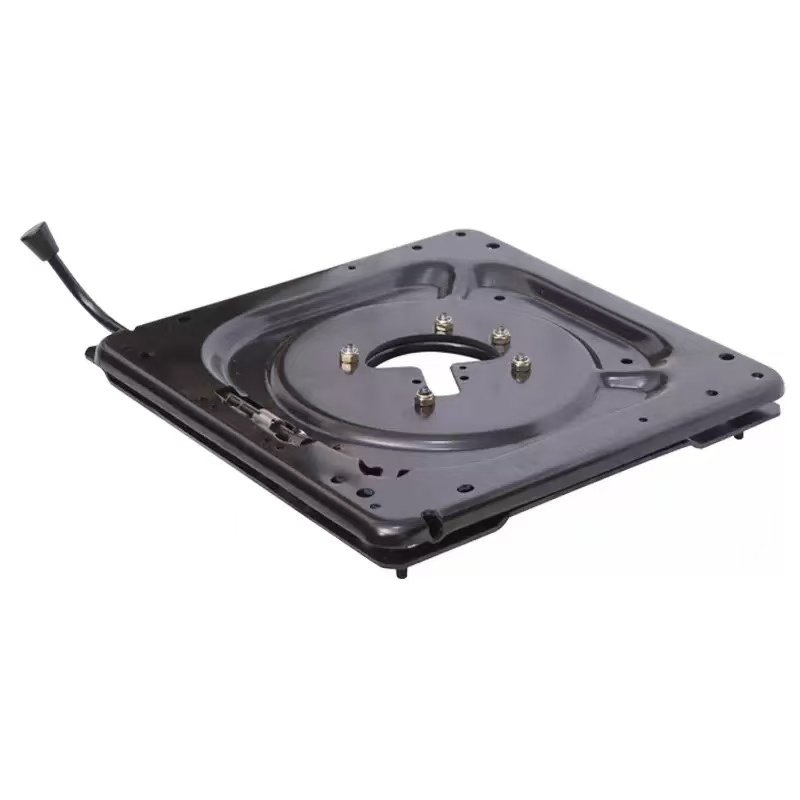

Type: Seat modification with 360° rotating base
Applicable vehicle models: Suitable for business vehicles, automobiles and recreational vehicles
External dimensions: 39*36*12CM
Material: Steel
Filler: Steel
Backrest adjustment Angle: 130°
Weight/Volume: 9.25kg/0.05m³
Rotation function: Adjust the horizontal rotation of the seat, with a rotation Angle of 10°, one lock, 360° rotation, 36 lock points, and can be turned left or right
Base load-bearing capacity: 130kg
Adjustable Angle: 0-360° (Each 10° is a lock)
Function status: Manually adjust to 10° one-lock
Top and bottom thickness: 5.3mm (excluding the height of the handle)
Thickness: 12cm (including the height of the handle). Remove the original seat and base, and then add this rotating disc to achieve 360° of the original seat
The installation method is as follows: 1. It is installed with a screw. If the threaded hole position does not meet the requirements, reaming or re-drilling can be used. 2. By using the connecting plate, a thin iron plate can be added. Drill holes according to the positions on the rotating disk and the seat base, and then install. Net weight/gross weight :8, 10.5kg. The size of this turntable can be directly connected to Gram’s mechanical shock-absorbing base without transition, making installation very convenient.
